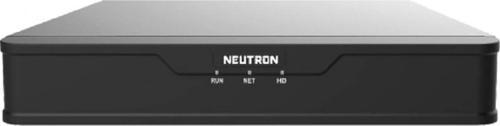

Neutron XVR301-16G 16 Kanal Ahd 24 kanal IP 8mp Destekli H265 Kayıt Cihazı

Neutron XVR301-16G 16 Kanal Ahd 24 kanal IP 8mp Destekli H265 Kayıt Cihazı



Bu ürün Hibrit kayıt cihazıdır. Dilerseniz 16 kanal BNC ile Ahd kameralarınızı çalıştırabilir + 8 IP kamera ekleyebilir. Dilerseniz yalnızca 24 IP kamera çalıştırabilirsiniz.

8 megapiksele kadar çözünürlük desteği mevcuttur.




ModelXVR301-16GVideo/Audio InputAnalog Video Input16-ch, BNCIP Video Input8-ch(only IP up to 8ch), each channel up to 8MPSupported Analog Camera TypesSupport AHD input: 5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support TVI input: 5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support CVI input: 1080P@30fps
720P@30fps
Support CVBS inputAudio Input1-ch, RCANetworkIncoming Bandwidth40Mbps (up to 56Mbps after all analog camera conversion)Outgoing Bandwidth64MbpsRemote Users128ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoEVideo/Audio OutputVGA Output1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzHDMI Output1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzAudio Output1-ch, RCATwo-way Audio1-ch, RCA Synchronous Playback16-chEncodingRecording Resolution5MP Lite/4MP Lite /1080P/1080P Lite/720P/D1/CIFRecording
Frame RateMain stream:Sub stream:5MP Lite@6fpsD1@6fps4MP Lite@8fpsD1@8fps1080P Lite@15fpsD1@6fps720P@15fpsD1@10fpsHard DiskSATA1 SATA interfaceCapacityUp to 10TB for each HDDExternal InterfaceNetwork Interface1 RJ45 10M/100M self-adaptive Ethernet InterfaceUSB InterfaceRear panel: 2 x USB2.0Serial Interface1 x RS485GeneralPower Supply12V DC
Power Consumption: ≤ 10 W( without HDD )Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)Dimensions(W×D×H)260mm ×240mm× 46mm (10.2" × 9.4"×1.8")Weight ( without HDD )≤1.1 Kg ( 2.42lb )
