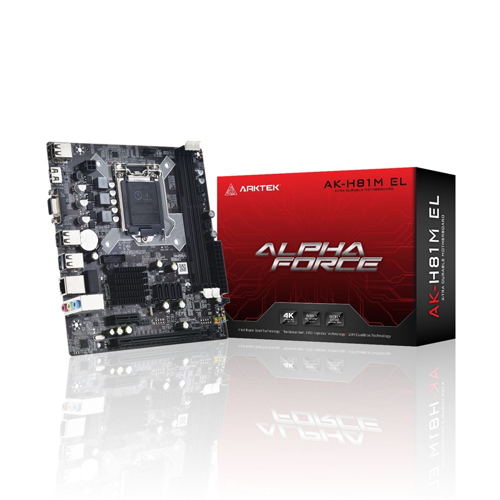

Arktek ALPHA FORCE, AK-H81M EL, 2xDDR3, M.2, D-SUB, HDMI, 4.Nesil, LGA1150 Soket, Anakart





  INTEL H81 CPU SupportSupport Intel® Core™ i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150package. Support Intel 4th generation multi-core processors ChipsetIntel H81 Chipset On-Board GraphicsIntegrated Graphics Processor MemoryDual Channel DDR3 1066/1333/1600MHz, Supports non-ECC, un-buffered memory DIMM2 x Memory Slots (Max. up to 8GB each) LANOnboard Realtek® RTL8105E 100 Mbps AudioOnboard Realtek® 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack SATA4 x SATA port, 1 x M.2 Port Back Panel I/O Ports1 x VGA port 1 x HDMI port 4 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack (Line in / Line Ourt / Mic in) ON-Board Pinheaders /Connectors1 x USB 2.0 pinheader supports additional 2 USB 2.0 ports 1 x Front Panel Audio pinheader Slots1 x PCI Express x16 slot, 1 x PCI Express x1 slot BIOSUEFI BIOS Form FactorMicro-ATX (21cm X 21cm) Mounting6 mounting holes Accessories1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD RemarkAll specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies.
