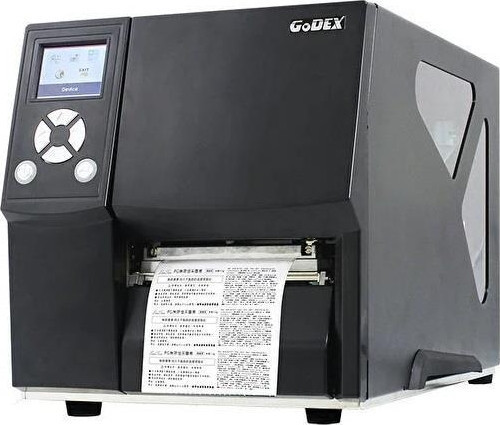

Godex Zx420İ 203 Dpi 6 İps Usb Direct Thermal+Transfer Seri+Usb Endüstriyel Barkod Yazıcı

Godex Zx420İ 203 Dpi 6 İps Usb Direct Thermal+Transfer Seri+Usb Endüstriyel Barkod Yazıcı 8690223110239 GoDEX ZX420i Specifications Print Method Thermal Transfer / Direct Thermal Resolution 203 dpi (8 dots/mm) Print Speed 6 ips (152 mm/s) Print Width 4.25” (108mm) Print Length Min. 0.16” (4 mm)** ; Max . 157.44” ( 3999mm) Processor 32-bit RISC CPU Memory Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB Sensor Type Adjustable reflective sensor and transmissive sensor, left aligned Media Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm) Cutter : Max. 4.61” (117 mm) Dispenser / Rewind : Max. 4.64” (118 mm) Thickness Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm) Label roll diameter Max. 8” (203.2 mm) with 3" (76.2 mm) core Max. 6” (152.4 mm) with 1.5" (38.1 mm) core Max. 5" (127 mm) with 1" (25.4 mm) core Core diameter Min. 1 " (25.4 mm) – Max. 3" (76.2 mm) Ribbon Types Wax, wax/resin, resin Length Max. 1476’ (450 m) Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon roll diameter 3” (76.2 mm) Core diameter 1” (25.4 mm) Printer Language EZPL, GEPL, GZPL auto switch Software Label design software GoLabel (for EZPL only) Driver Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008、 MAC、 Linux DLL Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10 Resident Fonts Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable Download Fonts Bitmap Fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable Barcodes 1-D Bar Codes China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart 2-D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39 Code Pages Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software Interfaces • USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) • USB Host (A-Type) Control Panel • Color TFT LCD with navigation button • 1 Power on/standby button with green color LED backlight • 1 Calibration button at rear panel • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) Power Auto Switching 100-240V AC, 50-60Hz Real Time Clock Standard Environment Operation temperature 41°F to 104°F (5°C to 40°C) Storage temperature -4°F to 140°F (-20°C to 60°C) Humidity Operation 20-85%, non-condensing Storage 10-90%, non-condensing Agency Approvals CE (EMC)、FCC Class B、CB、UL、cUL、CCC Dimension Length 15.86” (403 mm) Height 10.79” (274 mm) Width 10.24” (260 mm) Weight 23.81lbs (10.8 Kg), excluding consumables Options Cutter (Dealer Install) Parallel port adaptor module (Centronic female 36-pin)(Dealer Install) Bluetooth (Dealer Installer) Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install) External label rewinder Label Dispenser (Dealer Install)
